HARTFORD SHOPS

May 1 2022 PRICE LIST

1 ½” scale parts

4 1/8 diameter wheel castings, ductile iron

$25.00

4 1/8 diameter wheel machined, 5/8 axle hole

$32.00

Axle, 3/4 diameter C1144 (stressproof) Several end style available

$15.00

4 1/8 wheel and axle set, assembled with axle and 2 wheels. specify 7 1/4 or 7 1/2 gauge

$85.00

Axle bearing, 608-2RS sealed ball bearing

$4.50

5" diameter diesel wheel, ductile iron

$28.00

5" diameter diesel wheel machined 5/8 axle hole

$35.00

Truck spring 5/8 OD x .090 wire x 1 1/2 long

$3.50

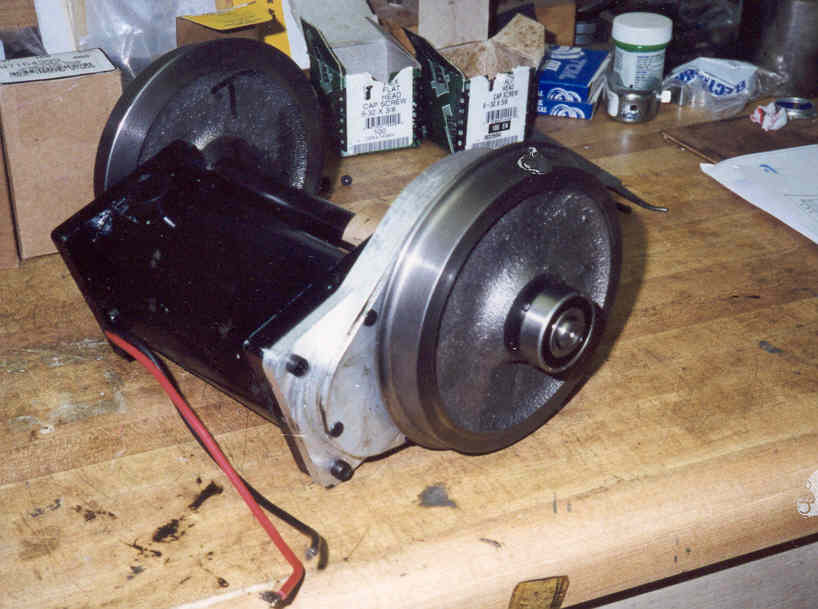

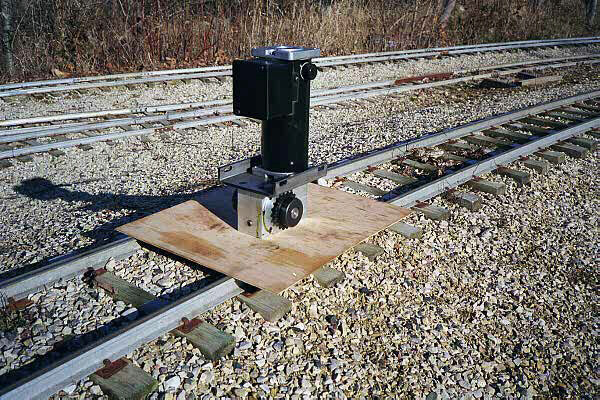

Electric power axle assembly RTR with 4 1/4” or 5" wheels Specified 7 1/4 or 7 1/2 gauge
24 volt high efficiency DC motor
Spur gears running in aluminum gear case, grease lubricated
Wheels, axles and bearings
550 RPM at 24 Volts
Click here for picture

$700.00

Electric motor as used on the power axle assembly 1 ½ and 2 ½ scale

$325.00

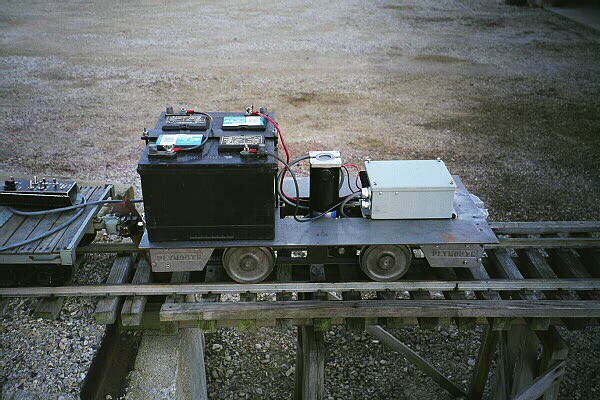

Power control assembly
120 Amp output at 24 Volts
Will control up to 4 axles
Hand held control box with cable and plug
MU enabled (cable extra)
Click here for picture

Contact for pricing and options

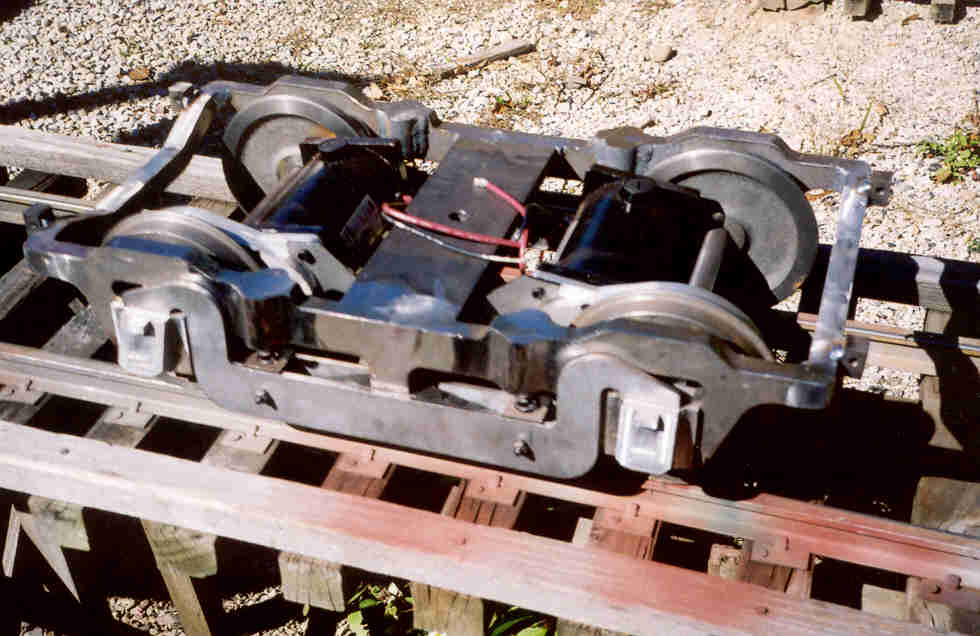

Diesel truck assemblies – several styles available, call for availability and pricing

Click here for picture of SW (ARA type A) truck

Click here for picture (ARA type B) truck

Contact for pricing and options




2 ½” scale narrow gauge parts (7 ½ / 7 ¼ gauge)

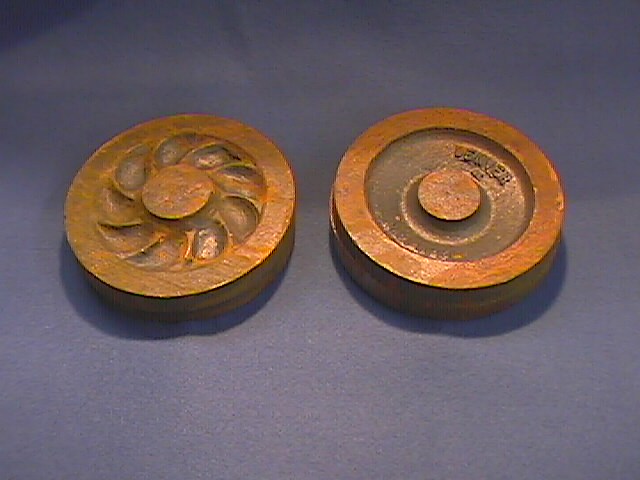

Car wheel casting Ductile iron 26” diameter (5 1/4)
Click here for picture

$35.00

Freight car wheel machined, specify 26” diameter (5 1/4” )

$45.00

Axle

$18.00

Bearings (ea.)

$4.50

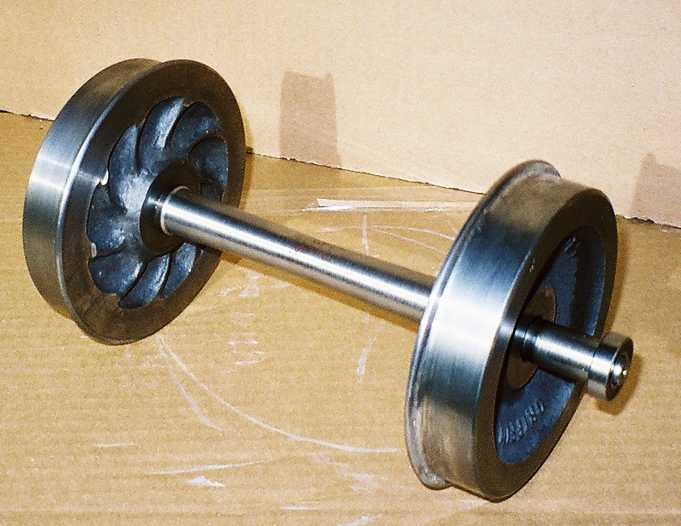

Wheel set, includes 2 wheels, 1 axle, 2 bearings and assembly
Click here for picture

$116.00

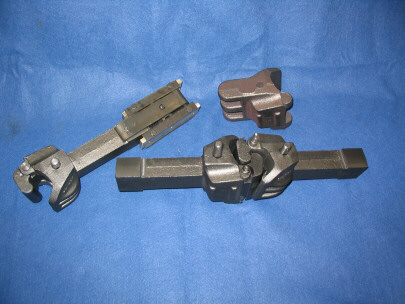

Coupler, long shank (ductile iron) - machined and assembled
Click here for picture

$65.00 ea.

Coupler, short shank (ductile iron) – machined and assembled
Click here for picture

$65.00 ea.

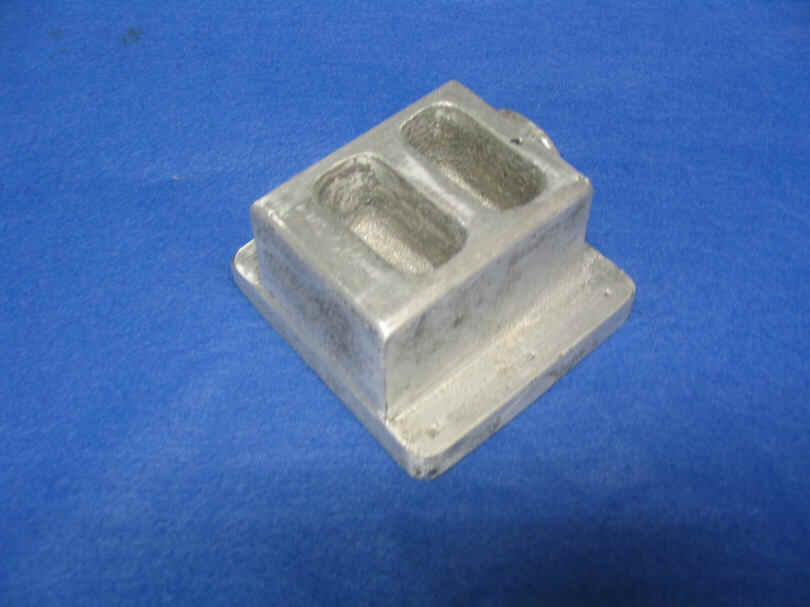

Coupler pocket for short shank coupler (cast iron) rough
Click here for picture

$28.00 ea.

Coupler pocket drilled
Click here for picture

$38.00 ea.

Striker casting (coupler pocket)

$50.00 ea.

Cardwell friction draft gear

$90.00 ea.

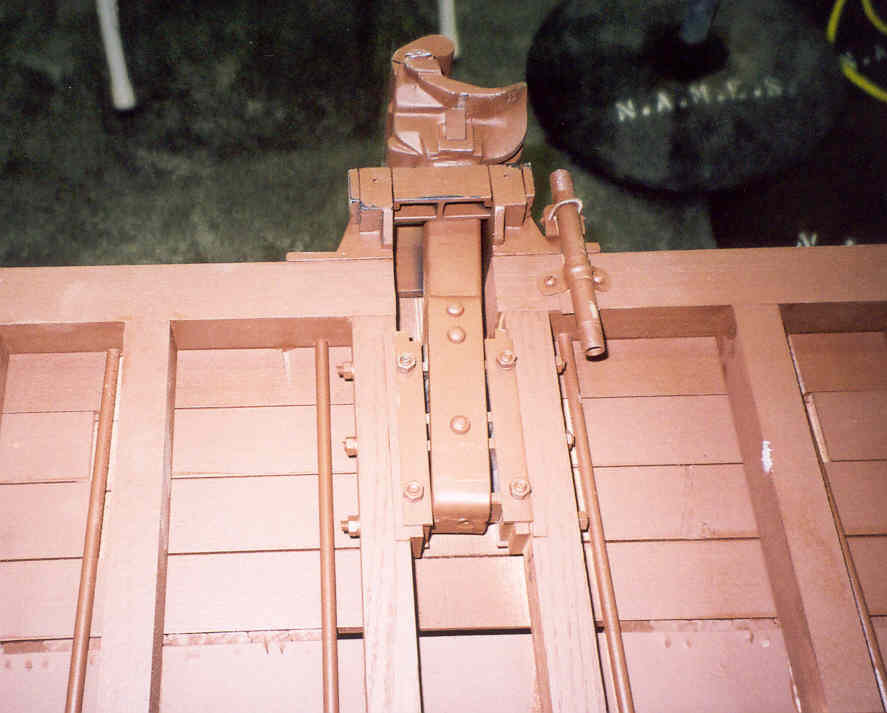

Minor short frame draft gear
Click here for picture

$55.00 ea.

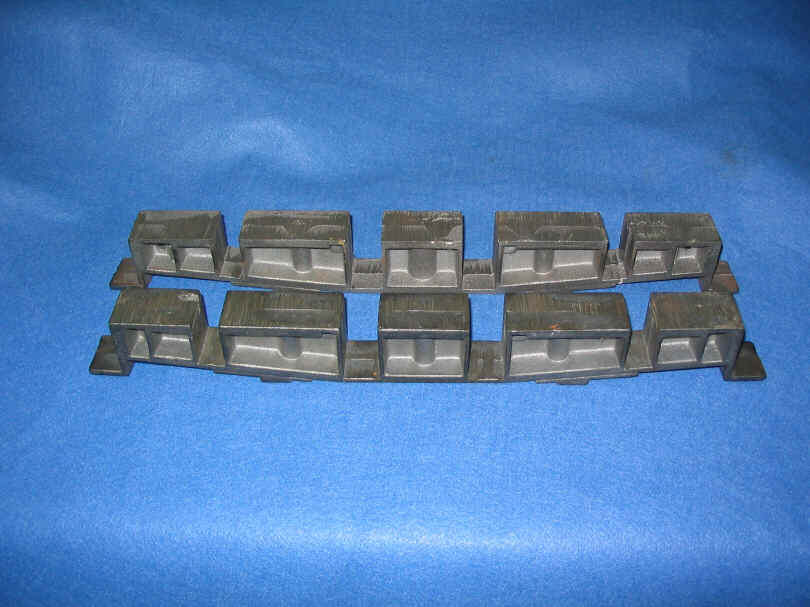

Car bolster casting wide for box/stock and narrow for others Machined
Click here for picture

$90.00 ea.

Center pin for car bolster. Old style

$15.00 ea.

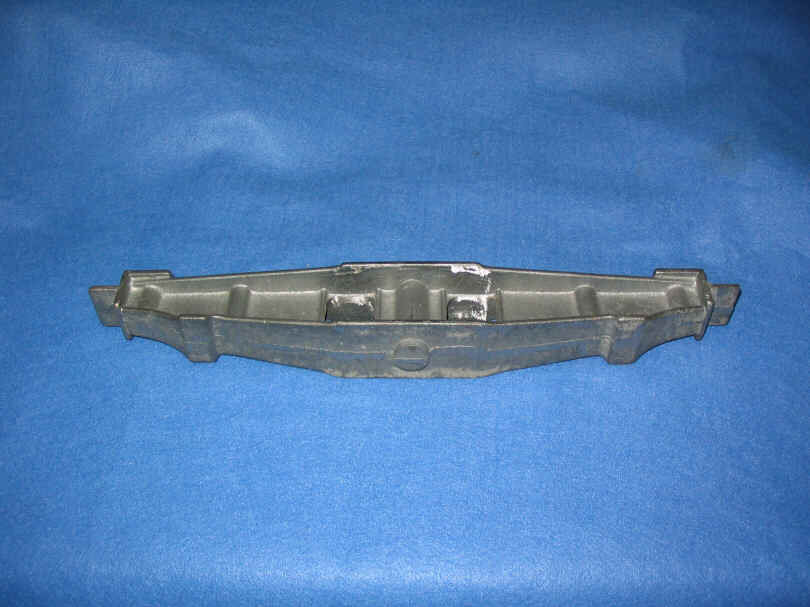

Gondola bolster casting for Cardwell gear
Click here for picture

$100.00 ea.

Gondola side plate castings for Cardwell gear (1 left and 1 right 1 end)

$300.00 set

Gondola side plate castings for Cardwell gear (1 left and 1 right 1 end) machined

$400.00 set

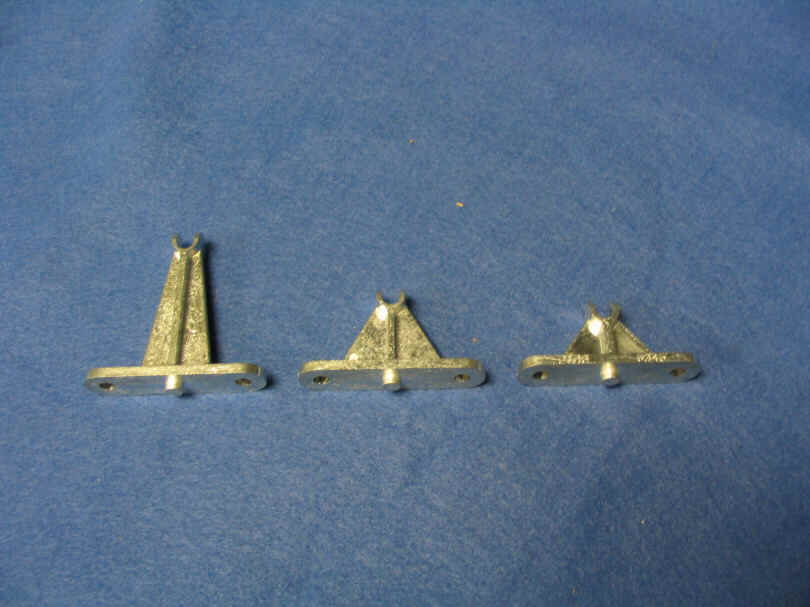

Queen posts Zinc die cast, short (7/8) medium (1 1/8) and long 2 3/16)
Click here for picture

$4.00 ea.

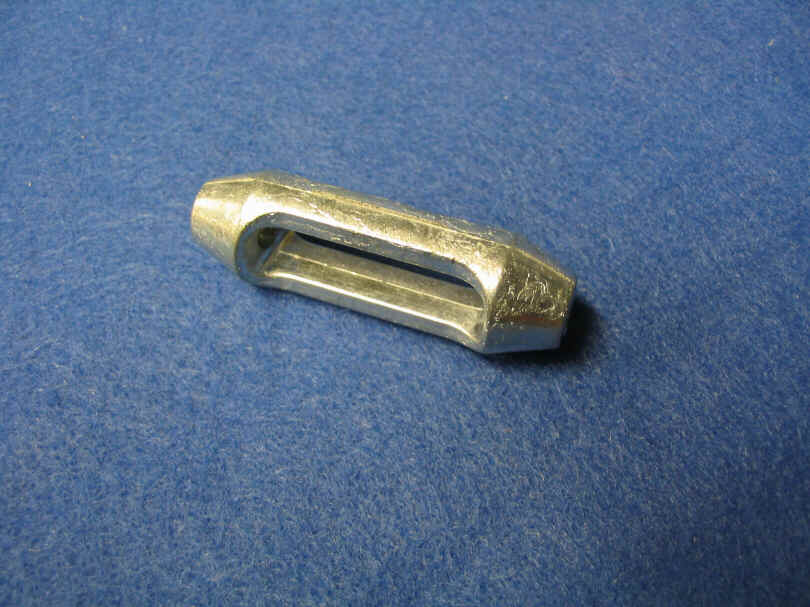

Turnbuckles (Zinc die cast – drilled but not threaded)
Click here for picture

$3.50 ea.

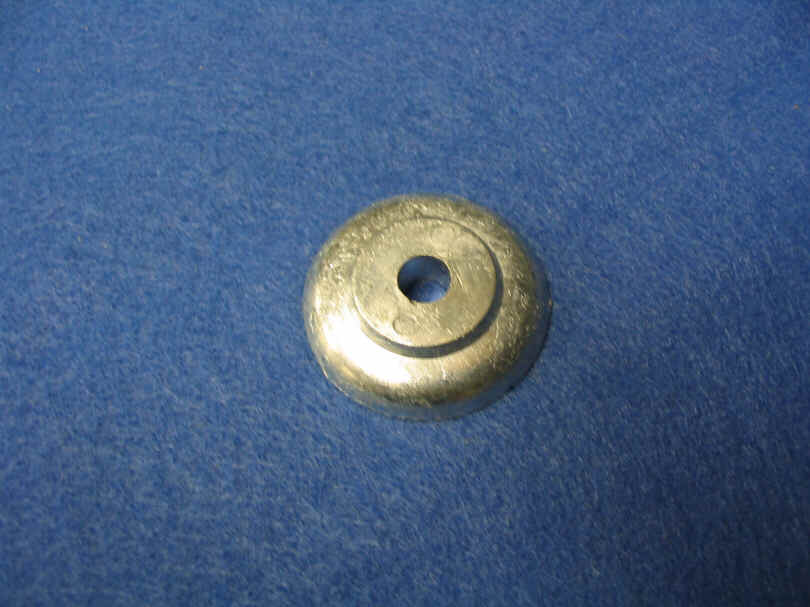

End washers (Zinc die cast)
Click here for picture

$1.25 ea.

Brake wheel (Zinc die cast)
Click here for picture

$12.00 ea.

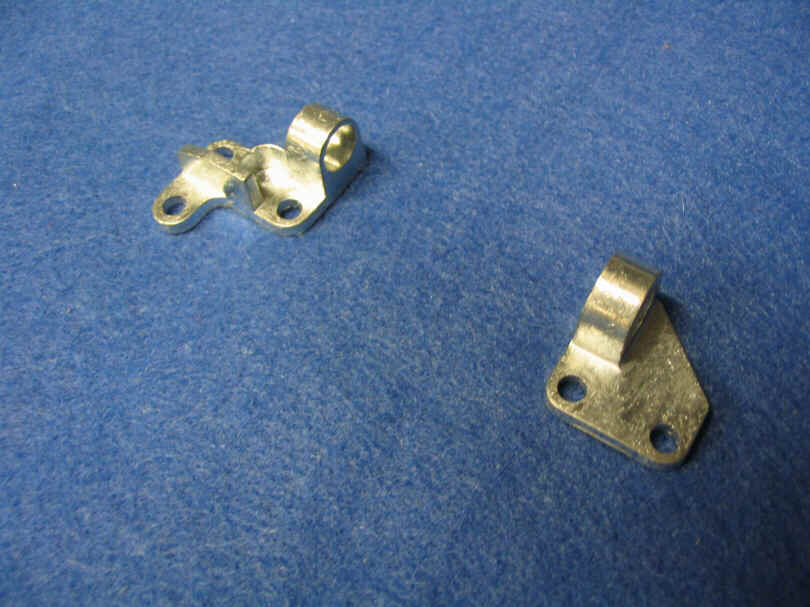

Coupler cut rod brackets – inner and outer (Zinc die cast)
Click here for picture

$7.00 set

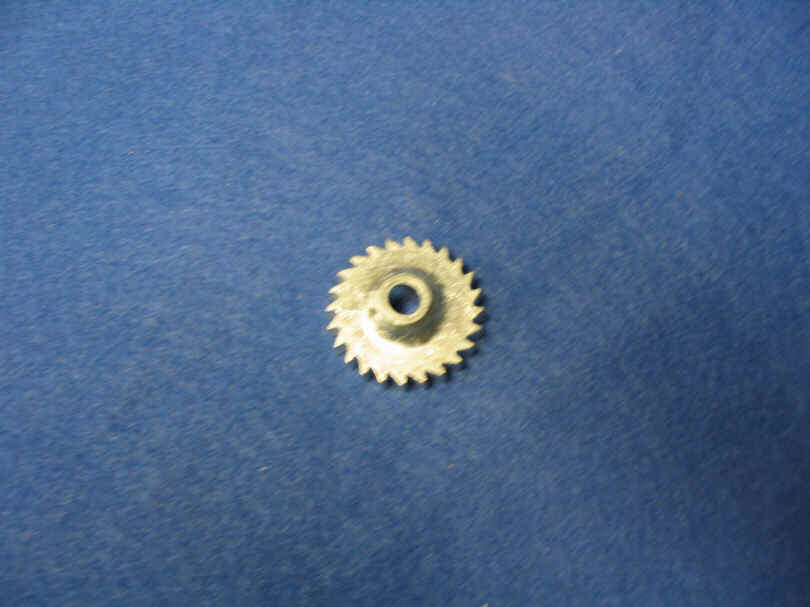

Brake shaft gear (Zinc die cast)
Click here for picture

$4.00 ea.

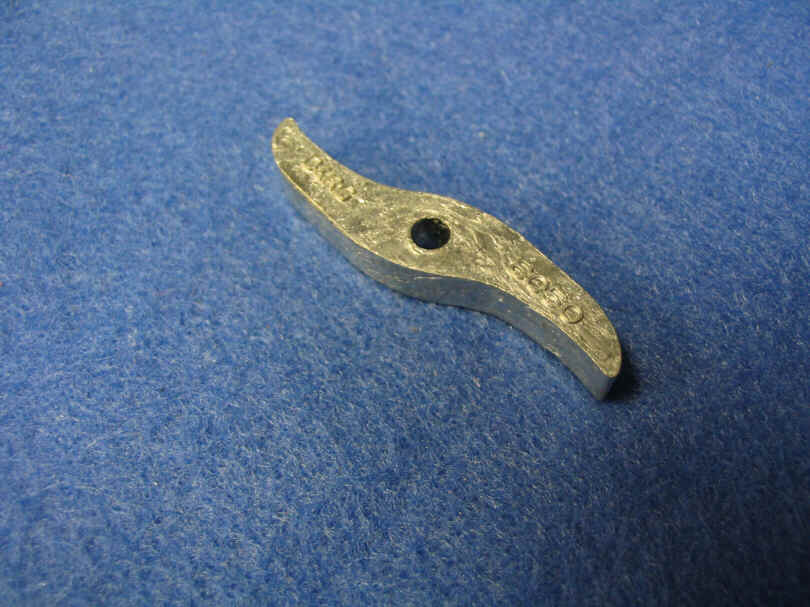

Brake shaft paw (Zinc die cast)
Click here for picture

$1.25 ea.

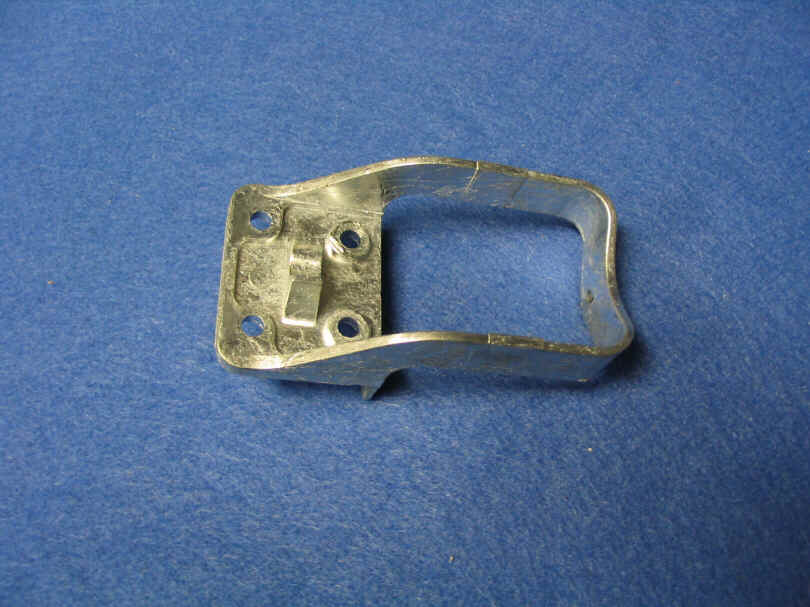

Brake shaft lower bracket (Zinc die cast)
Click here for picture

$7.00 ea.

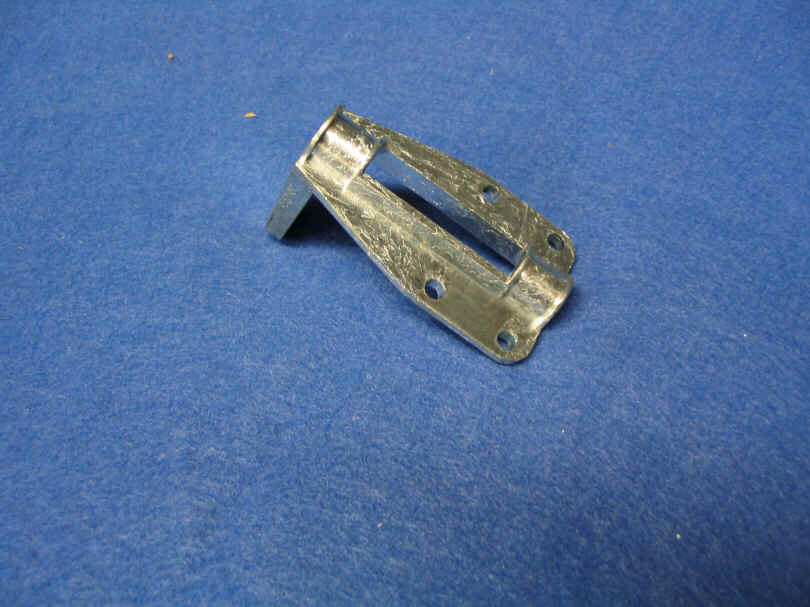

Brake shaft upper bracket (Zinc die cast)
Click here for picture

$7.00 ea.

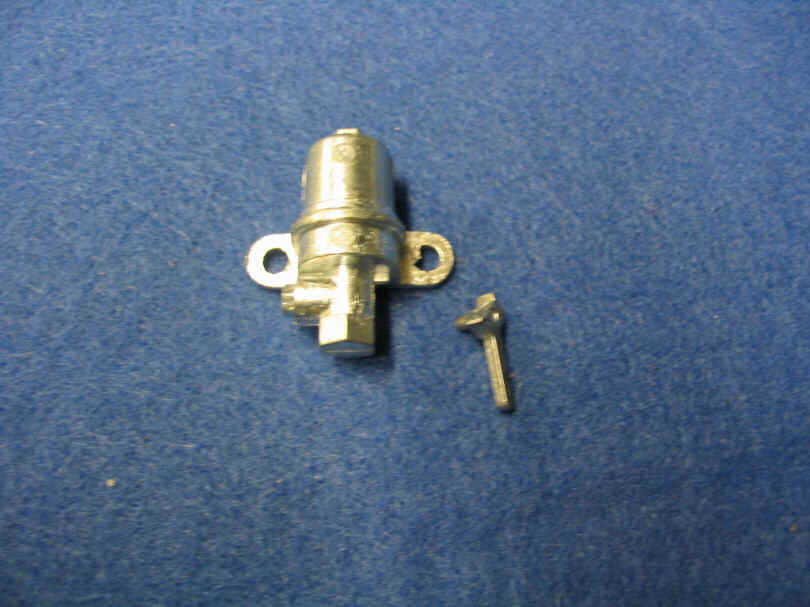

Retaining valve and lever (Zinc die cast)
Click here for picture

$7.00 set

Stake pocket(Zinc die cast)
Click here for picture

$10.00 ea.

U bolts for Stake pockets (formed brass) 1 pr required per pocket

$7.00 pr.

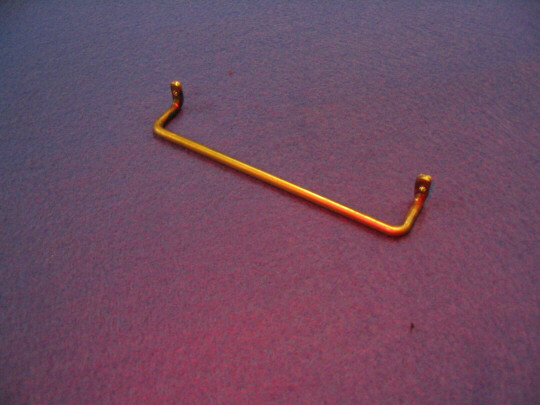

Grab irons
Click her for picture

$6.00 ea.

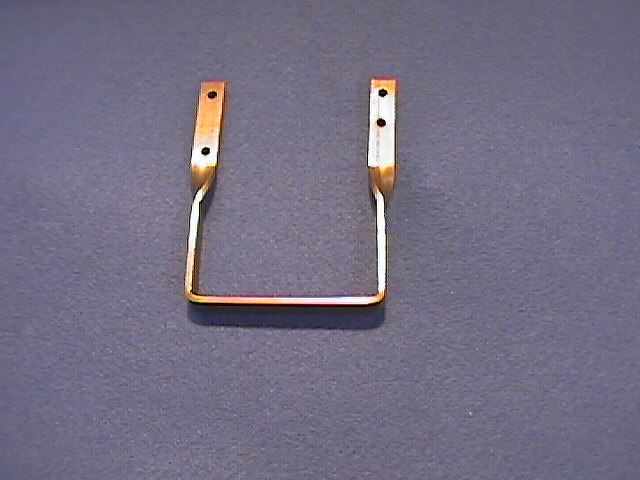

Steps(formed brass)
Click here for picture

$6.00 ea.

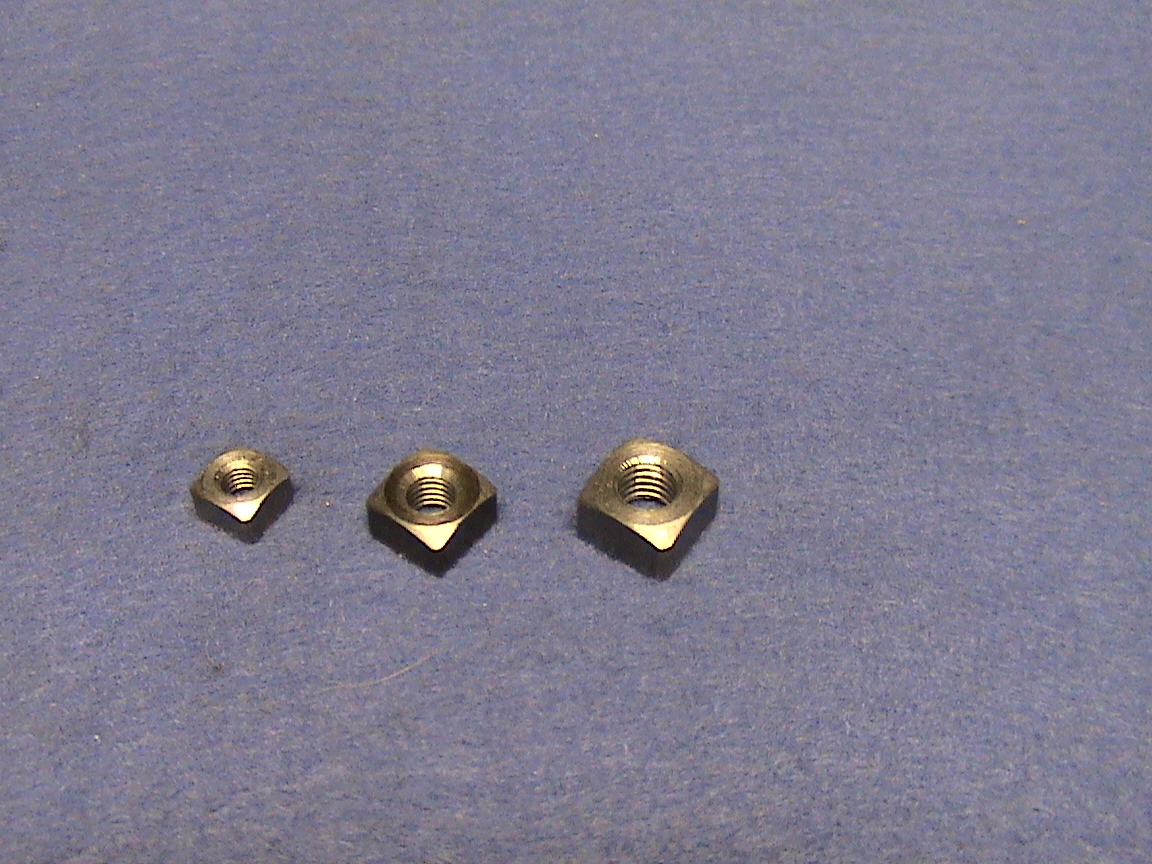

square nuts (3mm,4mm,5mm,6mm) price per 100

3mm = 6mm square x 3mm high

4mm= 7mm square x 4mm high

5mm= 9mm square x 5mm high

6mm=10mm square x 6mm high

D&RGW stamped lock washer nut. 3, 4, or 5 mm for above nuts (100)
Click here for picture



3mm $14.00

4mm $15.00

5mm $17.00

6mm $ 18.00

$12.00

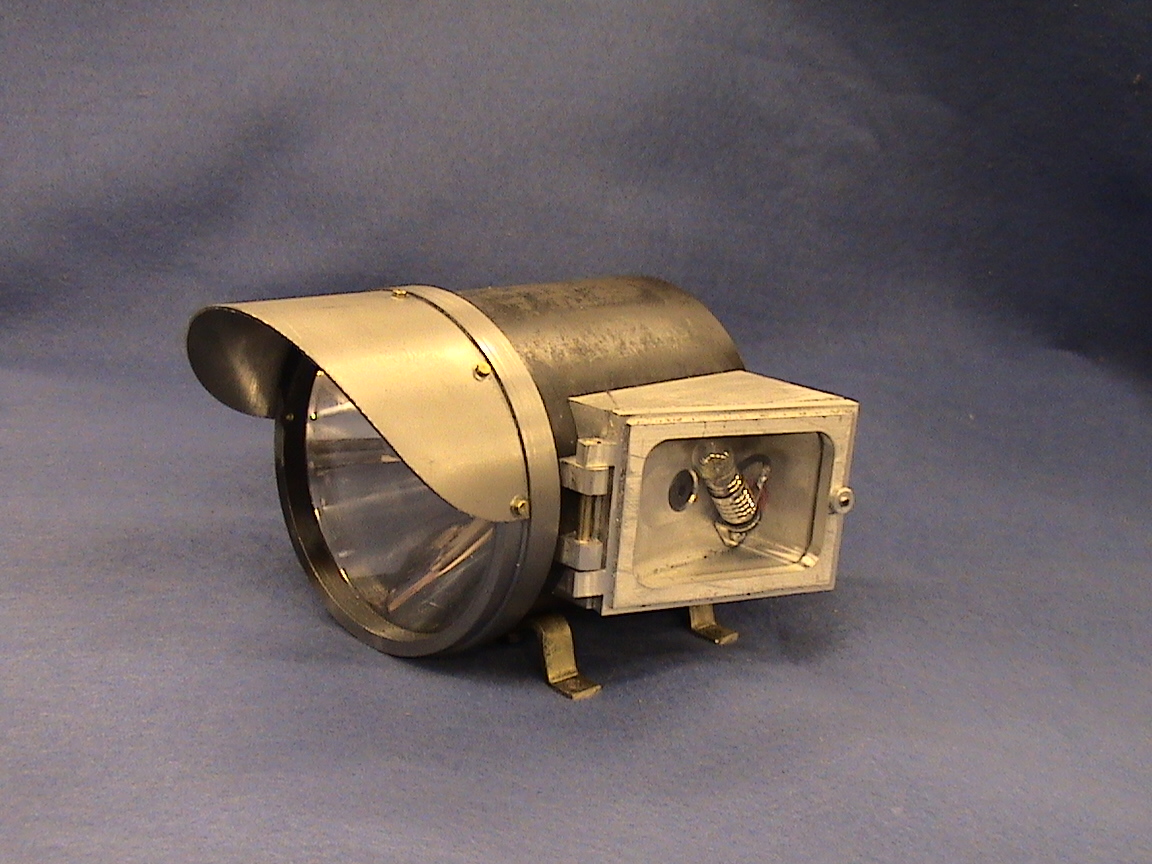

Headlight ready to install
Click here for picture

$500.00

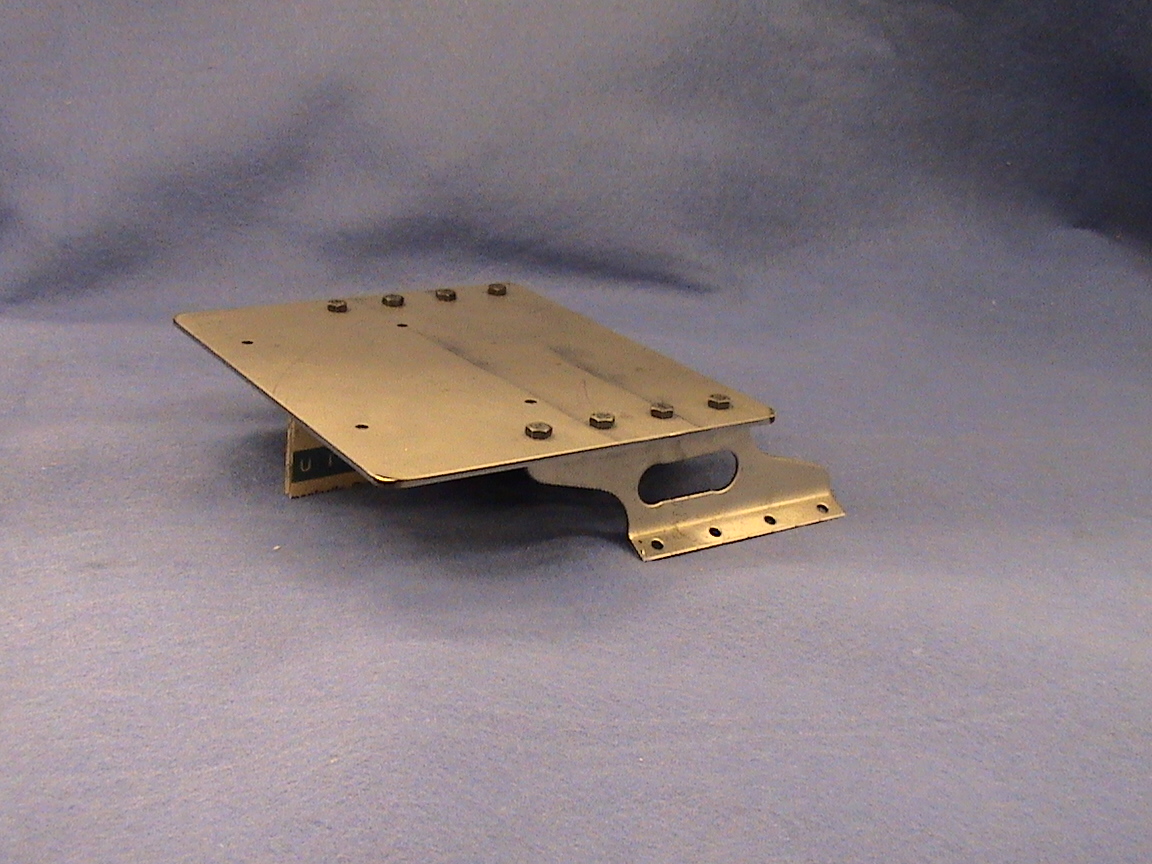

Headlight base (RGS20)
Click here for picture

$40.00

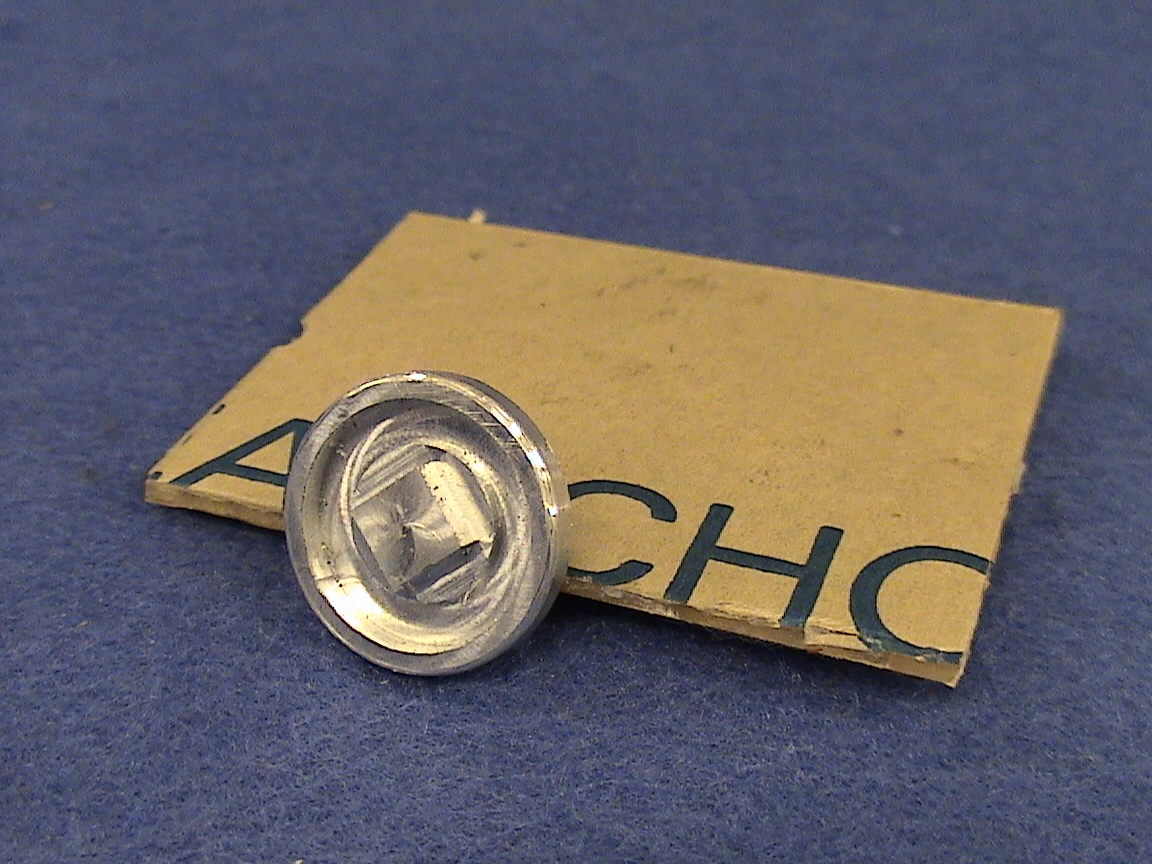

Washout plug
Click here for picture

$8.00 ea.

Hand rail post, short (1” high)
Click here for picture

$7.00 ea.

Hand rail post, long ( 2” high)
Click here for picture

$9.00 ea.

Hand rail end (ball end) drilled for 5/16 handrail
Click here for picture

$3.00 ea.

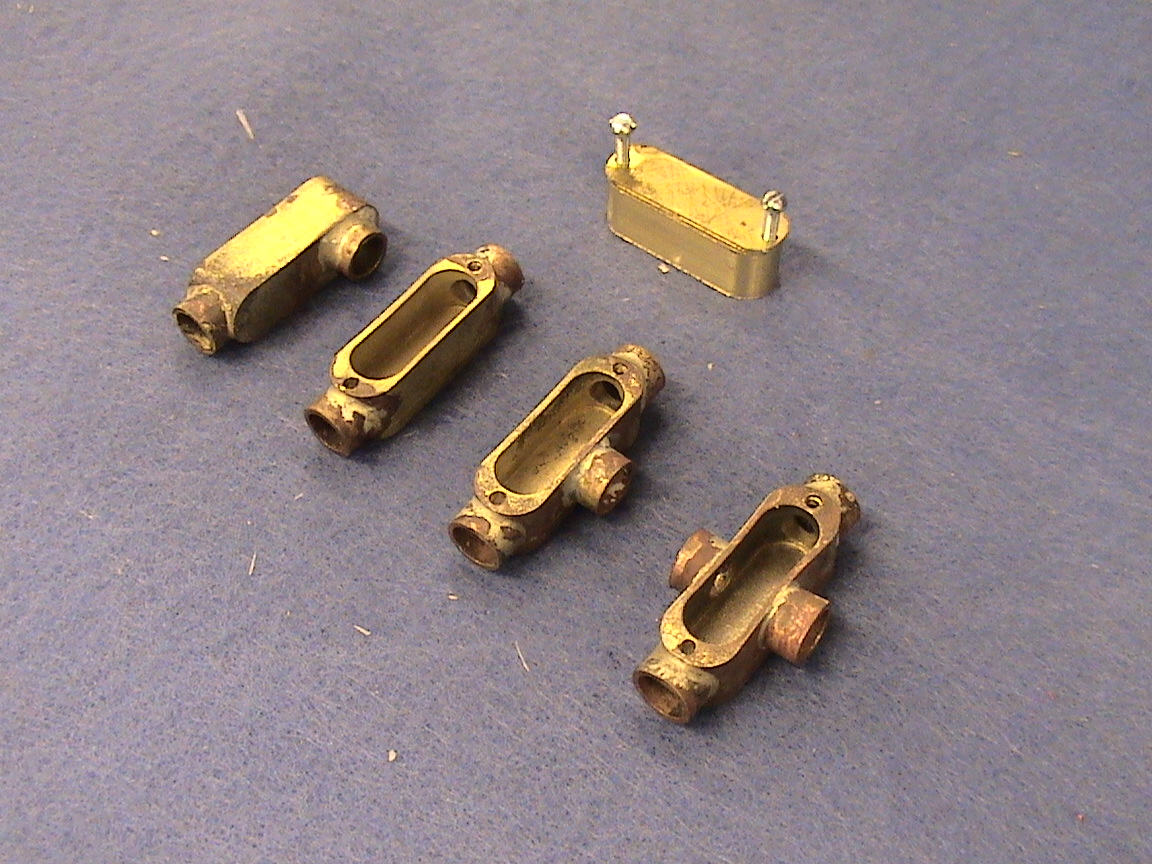

Electrical box (90 deg pulling elbow) box, cover and screws
Click here for picture

$13.00 ea.

Electrical box (straight through) box, cover and screws
Click here for picture

$13.00 ea.

Electrical box (3 way) box, cover and screws
Click here for picture

$14.00 ea.

Electrical box (4 way) box, cover and screws
Click here for picture

$15.00 ea.

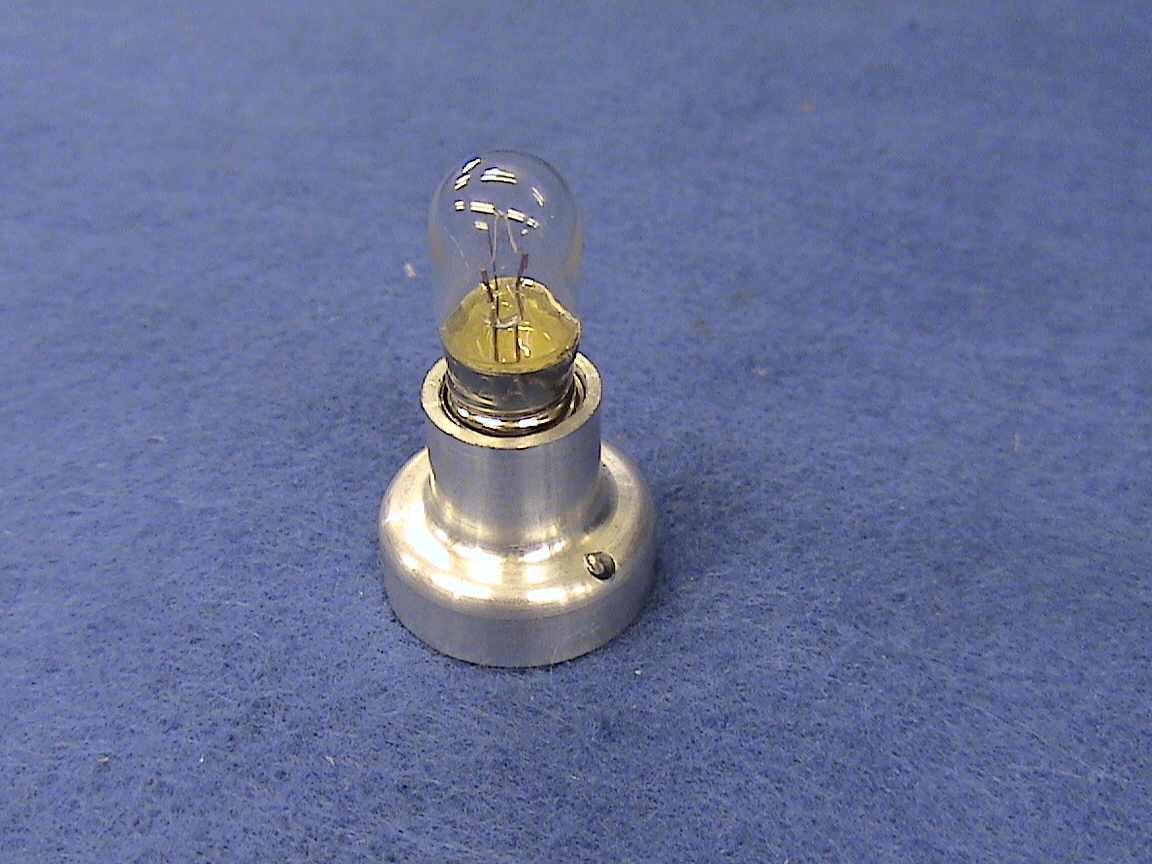

Lamp holder base and socket
Click here for picture

$12.00 ea.

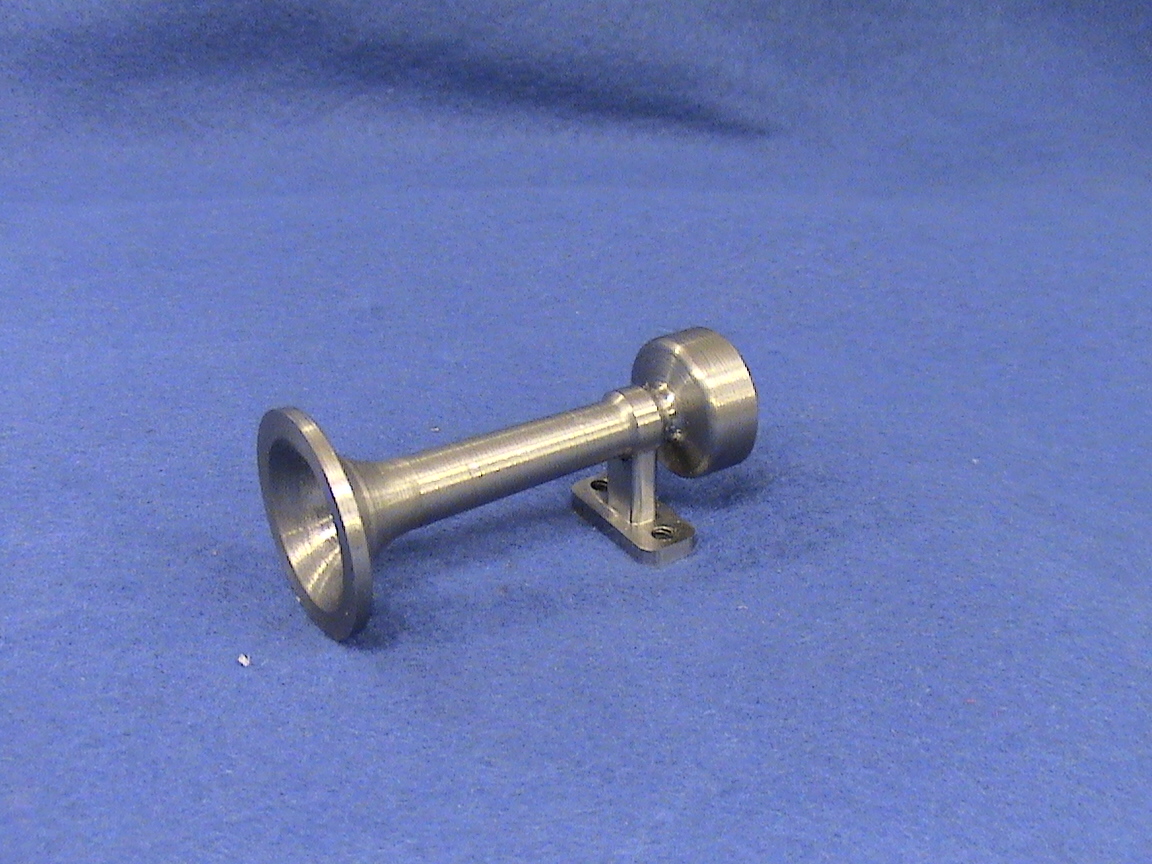

Diesel horn single chime
Click here for picture

$40.00 ea.

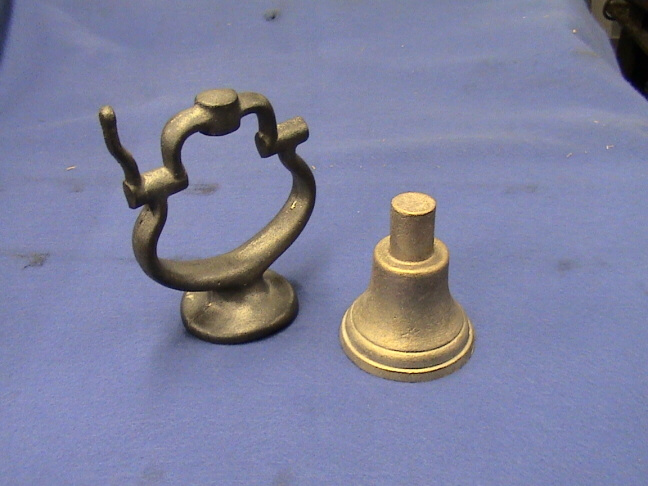

Bell castings (unmachined) bell and harp casting
Click here for Click here for picture

out of stock

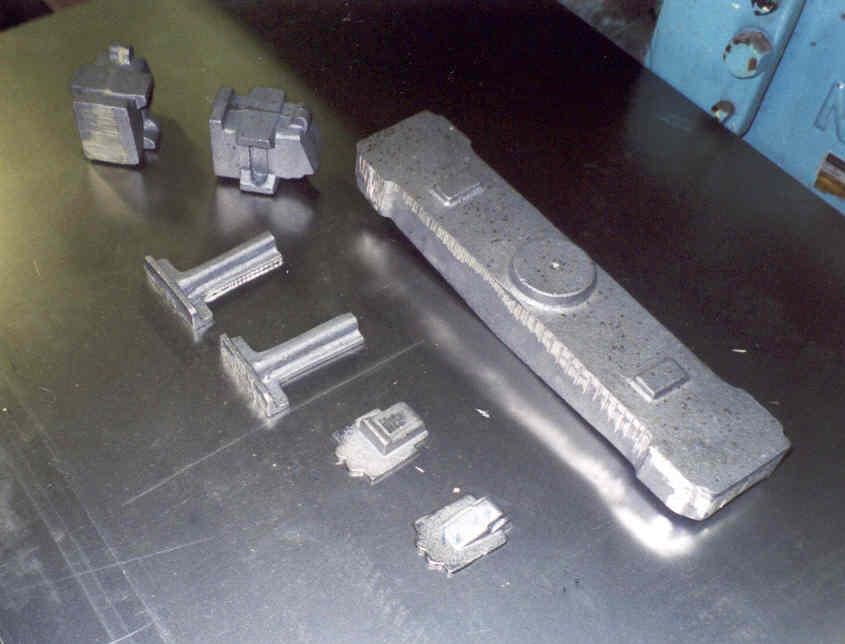

Arch bar truck castings only (tender, caboose or freight)
Click here for picture

$700.00

Arch bar truck kit 3'6” or 4' wheelbase, All material for 1 pair (tender, caboose or freight)

$850.00 freight

$950.00 caboose and tender

Arch bar truck machined and assembled 3'6” or 4' wheelbase, 1 pair (tender, caboose or freight)

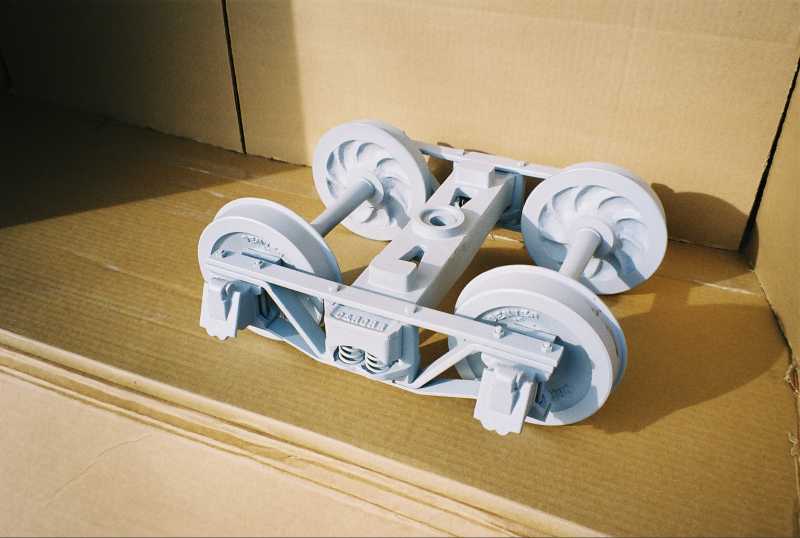

Click here for freight car truck

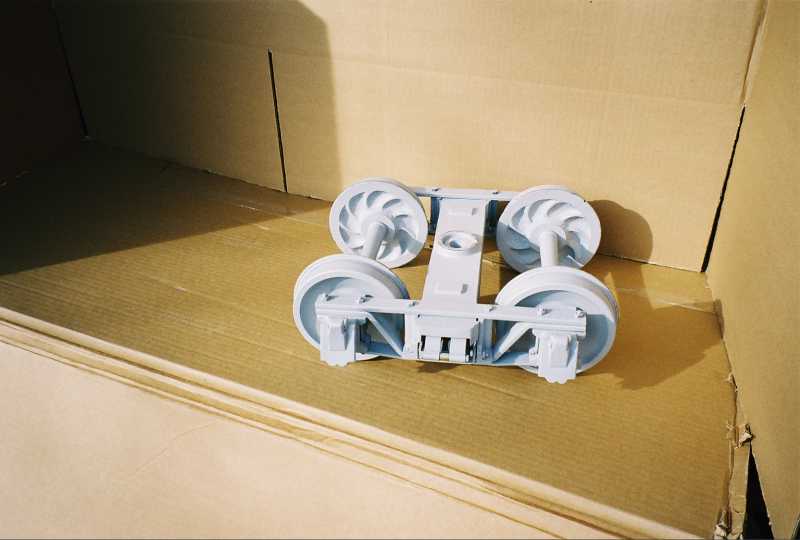

Click here for caboose truck

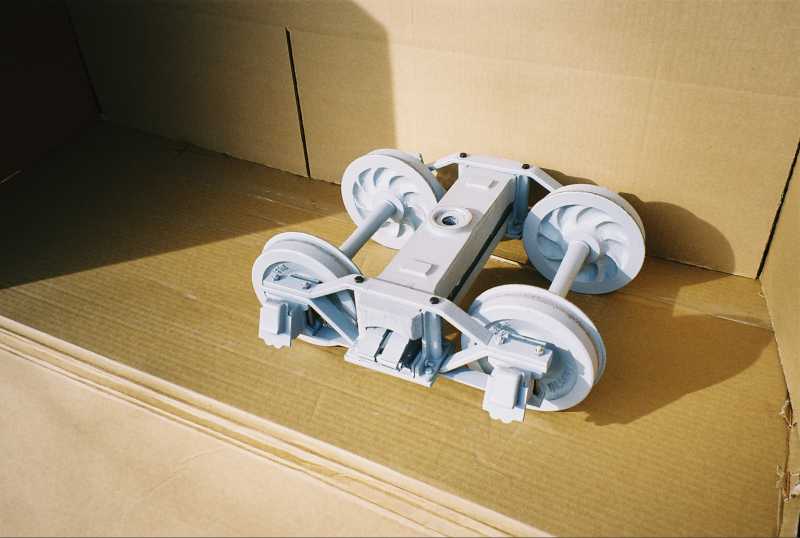

Click here for tender truck

$1100.00 freight

$1200.00 caboose and tender

Powered tender trucks for tender drive locomotive

$4,000.00

Powered axle assembly Several options available. Dual motors per axle 5 ¼ wheels

$900.00

Powered axle assembly for GE center cab

$1,400.00

Rio Grande Southern #20 (4-6-0) parts, call for availability and pricing on locomotives and parts

Click here for the rgs #20 product page


GE center cab narrow gauge locomotive, call for availability and pricing on locomotives and parts

Click here for GE center cab page


D&RGW C21 class 2-8-0 narrow gauge , call for availability and pricing on locomotive and parts

Click here for C21 page




Tom Artzberger
Thomas Artzberger Consulting llc.
For additional information email me at tom@tacllc.biz
or fax me at (970)731-0936

See our web site at www.tacllc.biz
