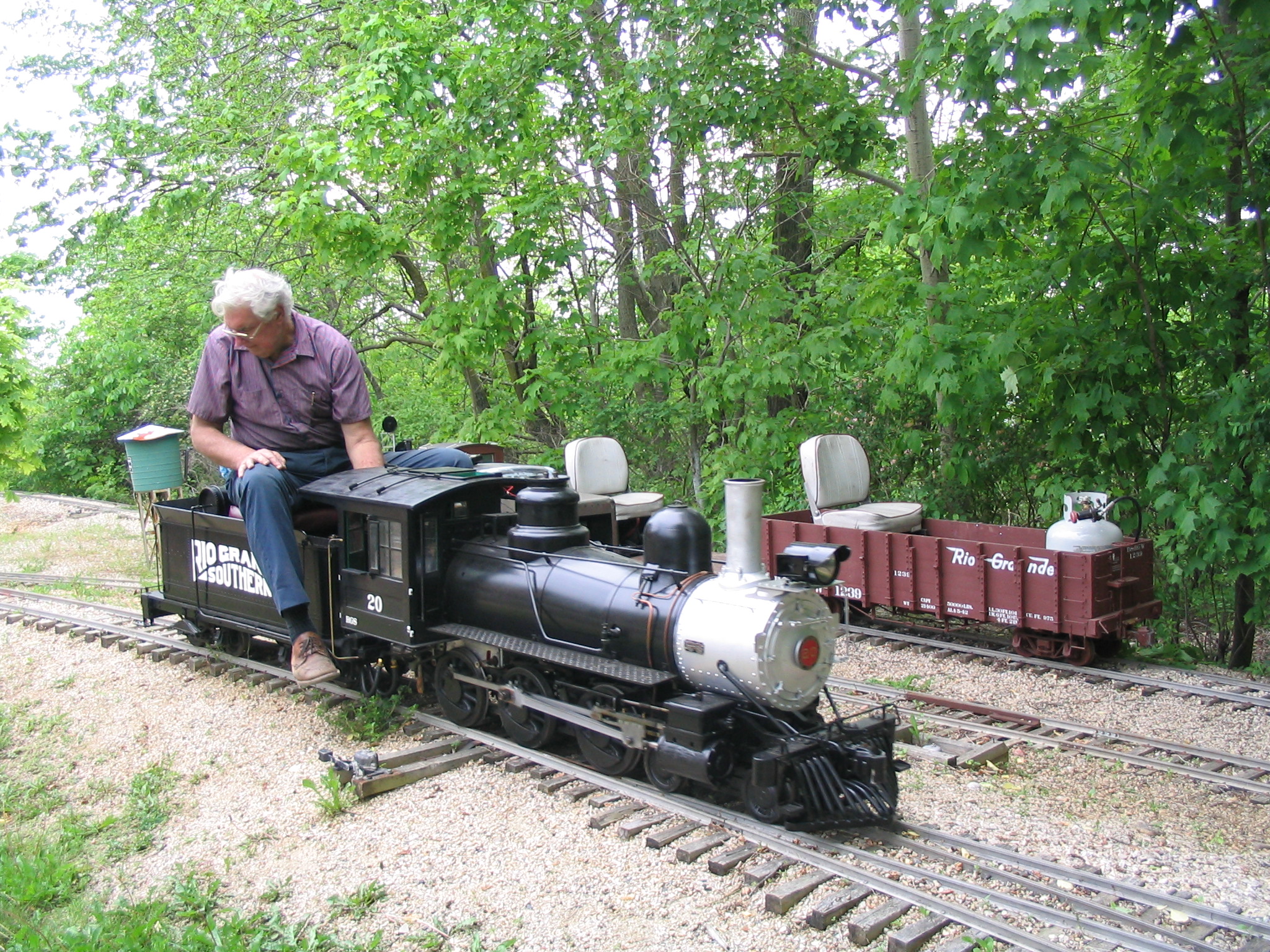

RGS20 LOCOMOTIVE PRICING
Pricing for locomotive as outlined below (does not include plumbing and detail parts)
Parts available rough (not machined) or machined ready to assemble
For machined parts theCustomer may have some cleanup and minor drilling and taping to do along with painting and finishing
Contact for pricing on castings and prints only
Pricing subject to change
Updated 11/1/07
LOCOMOTIVE
FRAME ASSEMBLY $1000.00 MATERIAL ONLY $1,200.00 MACHINED
WATER JET CUT FRAME ASSEMBLY
MACHINED VERSION READY TO ASSEMBLE, ROUGH VERSION CONSIST OF ALL WATERJET PARTS AND MATERIALS
HARDWARE INCLUDED
Click
here for picture
DRIVERS (SET OF 3) $400.00 ROUGH, $900.00 ASSEMBLED
DUCTILE IRON WHEELS, ECCENTRICS AND STEEL AXLES
MACHINED VERSION ASSEMBLED QUARTERED AND READY TO INSTALL, ROUGH VERSION CASTINGS AND MATERIALS ONLY
HARDWARE INCLUDED
FRONT TRUCK $350.00 ROUGH $600.00 MACHINED
WATER JET CUT FRAME, DUCTILE IRON WHEELS
MACHINED VERSION READY TO ASSEMBLED (WHEEL AM\NS AXLE SETS ASSEMBLED READY TO MOUNT)
ROUGH CONSIST OF ALL WATERJET PARTS AND MATERIALS
HARDWARE INCLUDED
LOCOMOTIVE SPRINGS $300.00 ROUGH $450.00 MACHINED
SPRING MATERIAL, CUT LINKS AND SPRING HANGERS
MACHINED VERSION READY TO INSTALL, ROUGH SPRINGS PUNCHED READY FOR ASSEMBLY AND ALL MATERIALS
SOME SILVER SOLDERING REQUIRED
HARDWARE INCLUDED
CYLINDER ASSEMBLY $1,000.00 ROUGH $2500.00 MACHINED
CYLINDER BLOCK, HEADS, STEAMCHEST,PISTONS, COVERS, VALVES
MACHINED VERSION READY TO ASSEMBLE, ROUGH ALL CASTINGS AND MATERIALS
HARDWARE, GASKET MATERIAL PACKING INCLUDED
SIDE AND MAIN RODS $250.00 ROUGH $700.00 MACHINED
MACHINED VERSION CUT OUT READY FOR POLISHING AND FINISHING (CUSTOMER CHOICE)
ROUGH VERSION MATERIAL ONLY
HARDWARE, BEARINGS AND PINS INCLUDED
VALVE GEAR $300.00 ROUGH $600.00 MACHINED
MACHINED VERSION READY TO ASSEMBLE, LINKS AND BLOCKS HARDENED
ROUGH VERSION CASTINGS AND MATERIALS
HARDWARE INCLUDED
BOILERS MARTY KNOX HAS BEEN BUILDING BOILERS FOR THOSE THAT WANT THEM
FOR BUDGETING USE $5000.00 BUT CHECK WITH HIM FOR A QUOTATION
SMOKE BOX $400.00 ROUGH $700.00 MACHINED
SMOKE BOX TUBE, DOOR CASTINGS AND STACK
MACHINED VERSION READY TO ASSEMBLE, ROUGH MATERIAL ONLY
HARDWARE, RIVETS INCLUDED
BOILER AND CAB MOUNTING ONLY AVAILABLE MACHINED $650.00
INCLUDES BOILER AND CAB MOUNTING PARTS ALONG WITH THROTTLE, BLOWER, ASHPAN, BOILER JACKET, CAB TURRET
HARDWARE INCLUDED
ENGINE BRAKE SYSTEM $550.00 ROUGH $800.00 MACHINED
INCLUDES BRAKE HANGERS AND SHOES, BEAMS AND RIGGING, BRAKE CYLINDERS, VALVE AND PIPING
CAN BE INSTALLED AS STEAM OR AIR OPERATED. AIR CAN BE SUPPLIED BY TENDER OR ENGINE MOUNTED COMPRESSOR
MACHINED VERSION READY TO ASSEMBLE AND INSTALL ROUGH CASTINGS AND MATERIALS ONLY
HARDWARE, PINS, CLEVISES FITTINGS INCLUDED.
DOME CASTINGS STEAM AND SAND $90.00 EA.
READY FOR CLEANUP AND INSTALLATION
CABS
WOOD CABS ARE AVAILABLE FROM BANTA MODEL WORKS
STEEL CABS ARE AVAILABLE FROM LOCOPARTS
CONTACT THEM FOR PRICING AND DELIVERY
ACCESSORIES ADD ON'S TO FINISH UP THE RGS20
TOTAL LOCOMOTIVE ROUGH $10630.00 MACHINED $14280.00
TENDER
FRAME $300.00 ROUGH $525.00 MACHINED
BOLTED STEEL FRAME LIKE THE PROTOTYPE. ROUGH MATERIAL ONLY, MACHINED PARTS CUT DRILLED AND FORMED
HARDWARE INCLUDED
TRUCKS $480.00 ROUGH 800.00 MACHINED
ARCH BAR TRUCKS WITH LEAF SPRINGS
TANK FOR BUDGETING USE $1200.00 KIT FORM ONLY SUPPLIED BY LOCOPARTS. CONTACT DON FOR QUOTATION
TANK CUT AND PUNCHED READY FOR RIVETING
PLUMBING KIT $250.00 KIT CONSISTING OF ALL OF THE PIPING FOR THE TENDER
DETAILS KIT $320.00 KIT CONSISTING OF DETAIL PARTS TO FINISH UP TENDER
AIR AND POWER KIT $350.00 KIT CONSISTING OF TENDER MOUNTED ELECTRIC COMPRESSOR AND ELECTRICAL SYSTEM FOR LIGHTS
BUILDER SUPPLIES 12 BATTERY
TOTAL
TENDER ROUGH $2900.00 $3445.00 MACHINED
